We made one for ours baja having aluminium casing for light weight and custom steering gear ratio. The goal is to design build test and race a. Baja sae steering design.
Baja Sae Steering Design, This design will meet SAE criteria to pass technical inspections for competition events. I was responsible for making important design decisions and performing design analysis and selection of components. The competition started in India in 2009 by the BAJA SAE INDIA. Reduce weight Steering 1.
Offroad Innovations Home From offroadinnovations.weebly.com
The design targets of our vehicle for Baja 09 are as follows. STEERING The function of the steering system is to steer the front wheels in response to driver command inputs in order to provide overall directional control of the vehicle. Baja SAE challenges engineering students to design and build an off-road vehicle that will survive the severe punishment of rough terrain and in some competitions water. Components to facilitate the function of steering.
In our previous years.
Read another article:
This includes redesigning and reassessing all major areas of the previous WPI Baja SAE vehicle. If you like this then support us on paypal. Other options included a five-linkage system hydraulic steering and an automated electrical system. For steering failure is defined in terms of effort 3. Components to facilitate the function of steering.
Source: ucsbracing.blogspot.com

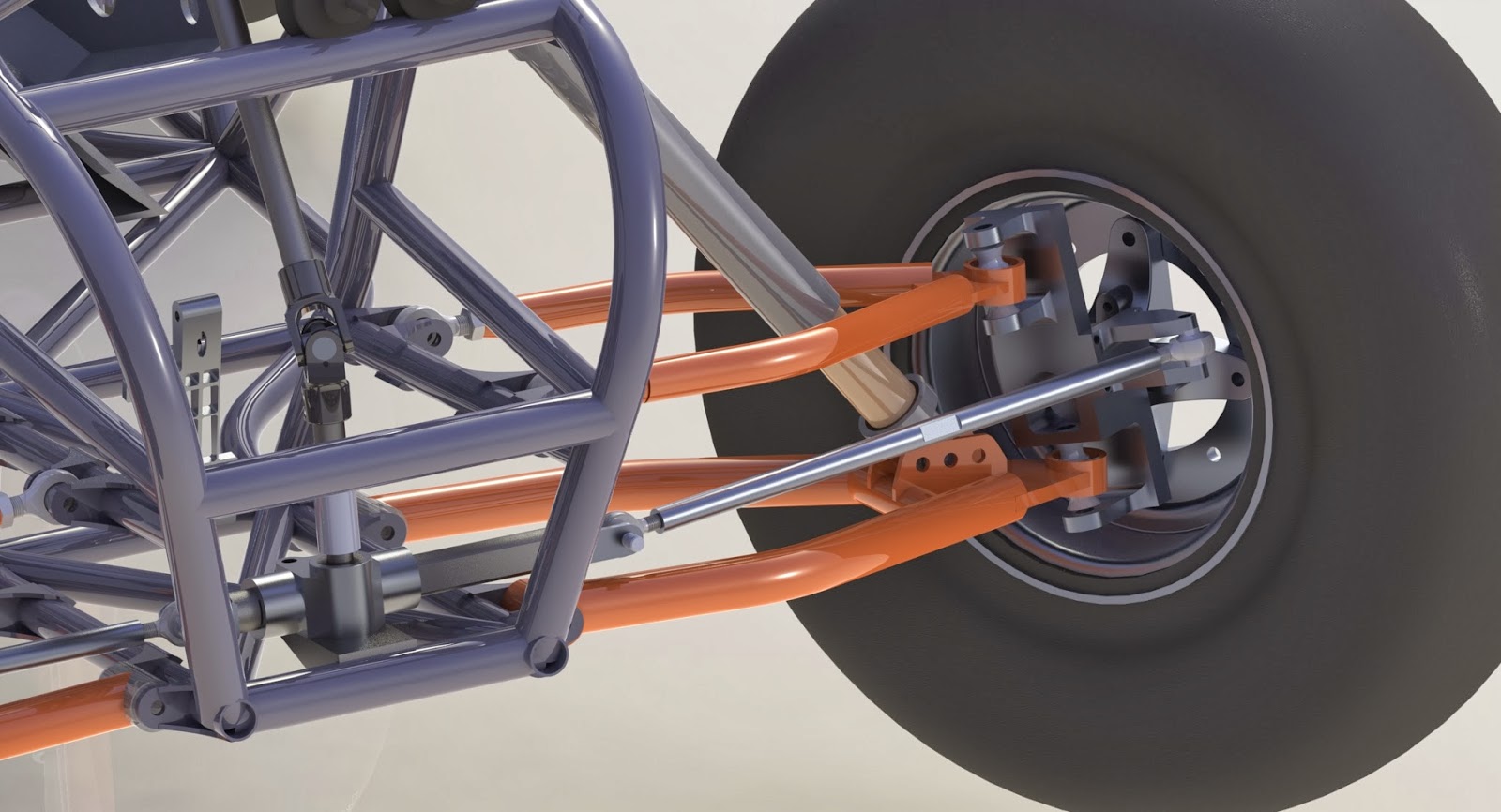

STEERING SYSTEM FOR SAE BAJA Dallin Colgrove Department of Mechanical Engineering BYU Bachelor of Science This thesis is to study the different types of steering geometry for the BYU Baja vehicle. STEERING Design of the steering system is based on a rack and pinion mechanism. The rack and pinion option was chosen for its simplicity ease of packaging in the vehicles toebox and proven success in past Baja applications. The goal is to design build test and race a. Ucsb Racing Baja Sae Final Design Cad Renderings.
Source: youtube.com
If you are using Ackermann steering geometry. Heres an illustrative calculation. The goal is to design build test and race a. Paypalmenobodyknow137Solidworks course for animation and motion analysis for beginners. Mini Baja Cad Design With Working Suspension Steering Drivetrain Youtube.
Source: slideshare.net
2016-2017 SAE Baja DesignManufacturing Project Hani Alnakhly MECET Design Emphasis Mohnannad Gazzaz MECET Design Emphasis. This design will meet SAE criteria to pass technical inspections for competition events. The competition started in India in 2009 by the BAJA SAE INDIA. Components to facilitate the function of steering. Baja Sae India Suspension Design.
Source: matthewreingold.com
STEERING The function of the steering system is to steer the front wheels in response to driver command inputs in order to provide overall directional control of the vehicle. Calculations for a rack and pinion steering system used in BAJA. Having a vehicle that is both maneuverable and capable of handling rough terrain is key for victory at the 2014 SAE Mini Baja competition. Rack and pinion on the other hand can be highly customized according to your requirement. Sae Baja Suspension Design Matthew Reingold.
Source: grabcad.com
This report will discuss in depth analysis of the chosen front suspension and steering system for the Baja vehicle. Paypalmenobodyknow137Solidworks course for animation and motion analysis for beginners. Recirculating ball is complex heavy and doesnt provide driver feedback. The competition started in India in 2009 by the BAJA SAE INDIA. Sae Baja 2015 Uwindsor Steering And Front Suspension 3d Cad Model Library Grabcad.
Source: engineering.usu.edu
We used standard parts thus increased the applied by the driver and ability of the various reliability of the transmission system. Curb-To-Curb Turn Radius of 10 ft 2. We used standard parts thus increased the applied by the driver and ability of the various reliability of the transmission system. The steering design chosen was a back mounted rack and pinion. Baja Suspension Senior Project Usu.
Source: engprojects.tcnj.edu
Maintain proper wheel geometry throughout travel 4. Components to facilitate the function of steering. 1- To make the directions of the car more accurate. This includes redesigning and reassessing all major areas of the previous WPI Baja SAE vehicle. Project Update 1 Tcnj Baja Sae.
Source: cadcrowd.com

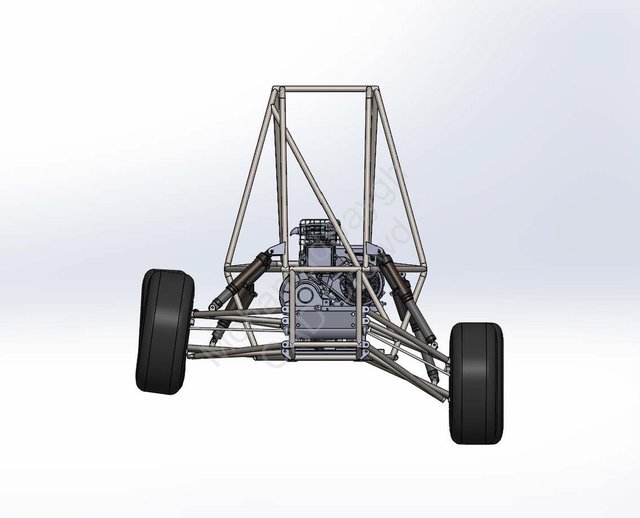

Enduro Student India is an exclusive student design competition which has been. Turning circle link lengths inclinations. Rack with centrally placed pinion manufactured with sand parts is chosen with following specifications. You need to find following. Baja Sae Vehicle Download Free 3d Model By Mohamadsaygh Cad Crowd.
Source: uvu.edu
The purpose of the Society of Automotive Engineers SAE Baja MQP was to update and modify the pre-existing vehicle for competition in 2017. The goal is to design build test and race a. If you like this then support us on paypal. STEERING SYSTEM FOR SAE BAJA Dallin Colgrove Department of Mechanical Engineering BYU Bachelor of Science This thesis is to study the different types of steering geometry for the BYU Baja vehicle. Baja Sae.
Source: grabcad.com
Ackermann steering geometry is ideal for low speed turns. Load the tire is going to take for bearing selection Points 1 and 2 can be known by using any suspension simulation software. STEERING SYSTEM FOR SAE BAJA Dallin Colgrove Department of Mechanical Engineering BYU Bachelor of Science This thesis is to study the different types of steering geometry for the BYU Baja vehicle. You need to find following. Baja Sae Model With Steering Assembly 3d Cad Model Library Grabcad.
Source: saebajamarquette.weebly.com
The main steering geometries of study are Ackermann and parallel steering geometries. Having a vehicle that is both maneuverable and capable of handling rough terrain is key for victory at the 2014 SAE Mini Baja competition. Design Processes Analytical Explanations of BajaStudentIndia. Design of the Steering System of an SELU Mini Baja Car Alfred Showers and Ho-Hoon Lee Department of Computer Science and Industrial Technology Southeastern Louisiana University Hammond LA 70402 Abstract In this paper a steering system is designed for a SELU Mini Baja car which adopts a rack-and-pinion steering mechanism. New Steering Column Sae Baja Marquette.
Source: uvu.edu
The dynamic events include endurance race hill climbs maneuverability events and suspension traction events. Components to facilitate the function of steering. We used standard parts thus increased the applied by the driver and ability of the various reliability of the transmission system. If you like this then support us on paypal. Baja Sae.
Source: sa.rochester.edu
The main objective for the Mini Baja competition was to design and fabricate a one-man all-terrain vehicle having more than two wheels that could compete with manufactured versions from the viewpoint of safety. The rack and pinion option was chosen for its simplicity ease of packaging in the vehicles toebox and proven success in past Baja applications. The main steering geometries of study are Ackermann and parallel steering geometries. Designing of the rack and pinion gearbox for all terrain vehicle for the competition baja sae india and enduro student india September 2017 International Journal of Research in Engineering and. Experimenting With Plastic Ur Baja Sae.
Source: offroadinnovations.weebly.com
The dynamic events include endurance race hill climbs maneuverability events and suspension traction events. Ackermann steering geometry is ideal for low speed turns. Providing for required wheel turning angles in the steering linkage wheel envelopes. This report will discuss in depth analysis of the chosen front suspension and steering system for the Baja vehicle. Offroad Innovations Home.
Source:
Enduro Student India is an exclusive student design competition which has been. The goal is to design build test and race a. We used standard parts thus increased the applied by the driver and ability of the various reliability of the transmission system. Enduro Student India is an exclusive student design competition which has been. 2.
