X x L t uAt AL qt V VAL cc t c x D D p p iis D i. Choose a tray or packing and divide number of equilibrium stages by tray efficiency to get actual. Absorption column design calculations.
Absorption Column Design Calculations, Select a suitable packing material with F p random or structured 2. X x L t uAt AL qt V VAL cc t c x D D p p iis D i. Y Partial pressure of so2total pressure. Select a suitable G LG G ratio and a total gas flowrate 3.
Pdf Design Of A Packed Bed Absorption Column Considering Four Packing Types And Applying Matlab From researchgate.net
Large if froth is expected also allow space for crawling 12 to 24. The primary objective is to determine the height and diameter of the column. Absorption and stripping are conducted mainly in packed columns and plate columns trayed tower as shown in Figure 51-2. However the graphical technique becomes very tedious when several solutes are present and must be considered.
The calculation of column diameter for distillation and absorption columns h6 is usually based on the flooding velocity which in turn requires values of the flooding capacity factor Cf- Fair s flooding-capacity plot for sieve trays 1 correlates the flooding capacity factor with a flow parameter Flv for each tray-spacing value t as shown in Figure 2.
Read another article:
106-5 or 106-6 5. Calculate ΔP flood 4. The primary objective is to determine the height and diameter of the column. The cure is slightly convex upward. Here is how Absorbed Overhead calculated Step in using absorption costing are.
Source: pinterest.com
1 Allocation of Variable Manufacturing. X x L t uAt AL qt V VAL cc t c x D D p p iis D i. For an absorption column is the bottom stage. FACTORS TO BE CONSIDERED IN DESIGNING AN ABSORPTION COLUMN Minimum Liquid Flow Rate Gas Flow Rate Loading Point Flooding Point Pressure Drop Along Transfer Units in the column Optimum operating condition for the packed column is located between the. Pin On Alternative Therapies.
Source: sciencedirect.com
Select a suitable G LG G ratio and a total gas flowrate 3. Maybe calculating the Production Overhead Cost is the most difficult part of the absorption costing method. Column cross section area Gas mass flow rate G 02778 16665 01667 Sqm Column dia 0461 m Thats it. F ACETONE ABSORPTION COLUMN Required. Packed Tower An Overview Sciencedirect Topics.
Source: sciencedirect.com
To do this list the. 32 Schematic of adsorption column L qA q flow rate u volumetric flux or Darcy velocity The continuity equation can now be expressed as follows. Fluid velocity larger than ascending bubbles minimum width. FACTORS TO BE CONSIDERED IN DESIGNING AN ABSORPTION COLUMN Minimum Liquid Flow Rate Gas Flow Rate Loading Point Flooding Point Pressure Drop Along Transfer Units in the column Optimum operating condition for the packed column is located between the. Packed Tower An Overview Sciencedirect Topics.
Source: link.springer.com

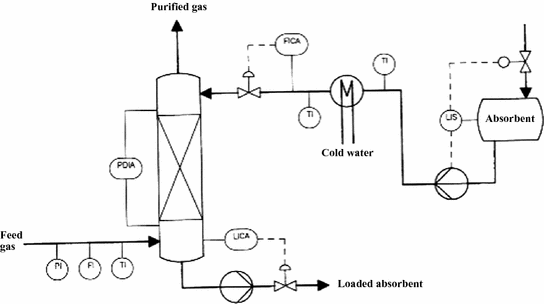

Choose a tray or packing and divide number of equilibrium stages by tray efficiency to get actual. Maybe calculating the Production Overhead Cost is the most difficult part of the absorption costing method. Select a suitable G LG G ratio and a total gas flowrate 3. The length of the packed bed column would be a function of the quantity mass of the molecular sieve required in the saturation zone of the packed column the selected bed diameter and the bulk density of the molecular sieve material. Absorption And Stripping Columns Springerlink.
Source: sciencedirect.com
Put an adiabatic flash first. 32 Schematic of adsorption column L qA q flow rate u volumetric flux or Darcy velocity The continuity equation can now be expressed as follows. The calculation of column diameter for distillation and absorption columns h6 is usually based on the flooding velocity which in turn requires values of the flooding capacity factor Cf- Fair s flooding-capacity plot for sieve trays 1 correlates the flooding capacity factor with a flow parameter Flv for each tray-spacing value t as shown in Figure 2. The solvent in is assumed to contain no co2. Packed Tower An Overview Sciencedirect Topics.
Source: sciencedirect.com
Arberor MITA Design groupELMAGERARD CALCULATION REPORT TECHNOLOGICAL AND CONSTRUCTION PROJECT EQUIPMENT ACETONE. The feed gas composition is specified. The exit gas composition is specified. Downcomer flooding should be avoided. A Concise Algorithm For Calculating Absorption Height In Spray Tower For Wet Limestone Gypsum Flue Gas Desulfurization Sciencedirect.
Source: youtube.com
Here is how Absorbed Overhead calculated Step in using absorption costing are. The solute gaseous molecules migrate from the bulk of the gas phase to the gas-liquid phase boundary interface by molecular andor eddy diffusion. Flow parameter at ΔP flood from correlation Fig. Select a suitable packing material with F p random or structured 2. Packed Column Design Youtube.
Source: researchgate.net
The cure is slightly convex upward. Here we will understand design equation for absorption column where component A in gases state is absorbed using plain water. 5 Range of velocities 01-07 ftsec. Most easiest way to design a packed absorption column. Pdf Amine Absorption Column Design Using Mass Transfer Rate Simulation.
Source:
For an absorption column is the bottom stage. Large if froth is expected also allow space for crawling 12 to 24. Most easiest way to design a packed absorption column. Graphical Method to Find Equilibrium Stages for Absorption Columns equilibrium constant mole fraction in gasmole fraction in liquid liquid flow rate mol time-1 liquid flow rate on a solute-free basis mol time-1 total number of stages. 2.
Source: youtube.com
To do this list the. FACTORS TO BE CONSIDERED IN DESIGNING AN ABSORPTION COLUMN Minimum Liquid Flow Rate Gas Flow Rate Loading Point Flooding Point Pressure Drop Along Transfer Units in the column Optimum operating condition for the packed column is located between the. Select a suitable packing material with F p random or structured 2. Ii φ cc t u c x si 0 The independent variables can be made dimensionless. Operation Of An Absorption Column Interactive Simulation Youtube.
Source:
FACTORS TO BE CONSIDERED IN DESIGNING AN ABSORPTION COLUMN Minimum Liquid Flow Rate Gas Flow Rate Loading Point Flooding Point Pressure Drop Along Transfer Units in the column Optimum operating condition for the packed column is located between the. 5 Range of velocities 01-07 ftsec. Here is how Absorbed Overhead calculated Step in using absorption costing are. Mass transfer separation operations involve the contact of two immiscible phases sometimes is intermittent ie. 2.
Source: sciencedirect.com
The absorption factor approach can be utilized either for hand or computer calculation. The PackCol program performs hydraulic design and rating calculations for packed columns and towers. How to calculate limiting flow rates and column diameter 1. However the graphical technique becomes very tedious when several solutes are present and must be considered. Packed Tower An Overview Sciencedirect Topics.
Source: sciencedirect.com
For an absorption column is the bottom stage. 5 Range of velocities 01-07 ftsec. Mass transfer separation operations involve the contact of two immiscible phases sometimes is intermittent ie. The PackCol program performs hydraulic design and rating calculations for packed columns and towers. Absorber Tower An Overview Sciencedirect Topics.
Source: youtube.com
DISTILLATIONABSORPTION COLUMN TRAY DESIGN ChE 4253 - Design I Tray Spacing. To do this list the. Select a suitable G LG G ratio and a total gas flowrate 3. ACETONE ABSORPTION COLUMN CALCULATION REPORT TECHNOLOGICAL AND CONSTRUCTION PROJECT EQUIPMENT ACETONE ABSORPTION COLUMN Nomenclature. Lec 22 Design Of Packed Column Absorber Based On The Individual Mass Transfer Coefficient Youtube.
Source: in.pinterest.com
The equilibrium x y data are converted to mole ratio unit X Y and plotted on X-Y plane. DISTILLATIONABSORPTION COLUMN TRAY DESIGN ChE 4253 - Design I Tray Spacing. ACETONE ABSORPTION COLUMN CALCULATION REPORT TECHNOLOGICAL AND CONSTRUCTION PROJECT EQUIPMENT ACETONE ABSORPTION COLUMN Nomenclature. Select a suitable G LG G ratio and a total gas flowrate 3. Lceted Institute For Civil Engineers Civil Engineering Civil Engineering Design Civil Engineering Construction.
